Description
SPECIFICATIONS:
dimensions: 3850mm x 2200mm x 1200mm
Packed dimensions: 3950mm x 2300mm x 1300mm
weight – dry / with water: 650kg/5430kg
water capacity: 4780 litre
configuration:
5 x sitting massage places
1 x reclining massage place
1 x swimming track
CONSTRUCTION :
shell material: acrylic US Aristech acrylic – 3 colors available – heat insulated


Pearl Marble Ocean
T04 T10 T01
lining and steps :
Grey – H03B Teak H04B Black – H06B
load-bearing frame: INOX
Base: fiberglass
Shell insulation: 1 cm polyurethane
PUMPS: A manufacturer of TOP premium brands of pumps
circulation pump: 1x 0.70 kW
massage pump: 2 x 1,5 kW
countercurrent pumps: 3 × 2,2 kW
blower: 0,70 kW
ELECTRONICS: GECKO – Canada
control unit: in.Ye5
control screen: Gecko In.k 800
heater: INOX 3 kw
ELECTRICAL CONNECTION:
1.) main electrical connection: 4.7 kW / 25A / 230V – 2.5 m cable 3 x 4 mm2
2.) Countercurrent pump 2: 2.2 kW / 16A / 230V – 2.5 m cable 3 x 2.5 mm2 – driven via a separate switch
3.) Countercurrent pump 3: 2.2 kW / 16A / 230V – 2.5 m cable 3 x 2.5 mm2 – driven via a separate switch
NOTE: If you want a different setting, such as a three-phase connection or raising the power limit, consider buying
CONFIGURATION NOZZLE – a total of 59 pcs
Countercurrent nozzles: 5 “- 5 pcs
Water jets:
3 ”nozzles: 20 rotary, 20 directional
1 ”nozzles: 6 pcs
Air nozzles: 8 pcs
nozzle material: INOX
UNDERWATER LIGHTING – total number of luminaires 22 pieces
LED RGB underwater lighting large: 1 pc
LED RGB underwater lighting per water line: 18 pcs
LED RGB lighting triple fountain: 3 pcs
Lighting control: GECKO in.mix
FILTERING:
cartridge filter: 2 pcs
Ozone Generator: YES
U.V. sterilizer: YES
OTHER EQUIPMENT:
LED fountain: 2 pcs
aromatherapy: YES
Discharge: 1 set
Anti vacuum Suction: 6 pcs
Overflow valve: 2 pcs
Mixing valve air water: 3 pcs
EVA foam pads: 2 pcs
thermal cover
stairs with 3 treads
NOTE:

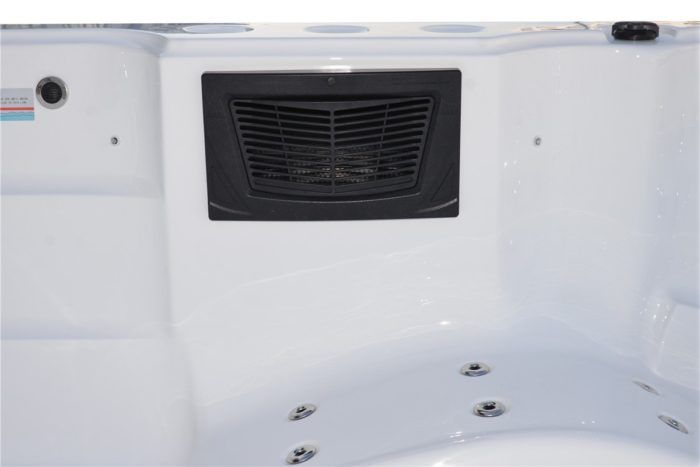

The pictures are for illustrative purposes only and do not necessarily show the identical pool for sale.
Only the descriptions in the appendix are valid.
The pool is as complex as Plug & Play with instructions for installation, startup, programming and maintenance in English.
WARRANTY:
construction: 10 years
shell surface – acrylic: 5 years
other equipment: 2 years
- the price for a one-time payment to a transaction account
