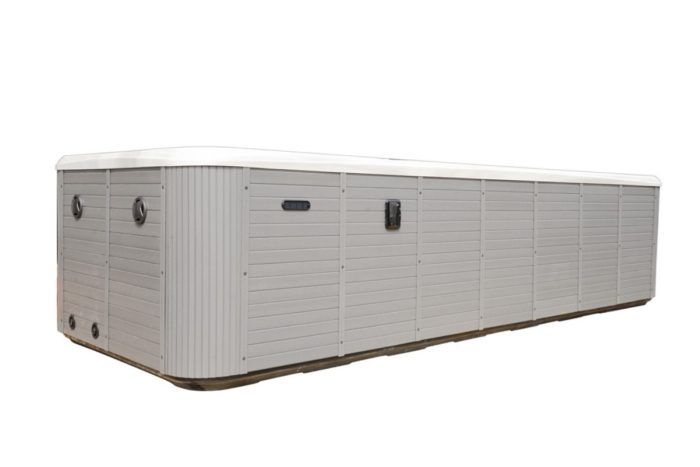

Massage Pool, counter-current swimming, Swim Spa – Ocean PREMIUM

Description

SPECIFICATION – total:
maximum length: 5800mm
maximum width: 2200mm
height: 1360 mm
dimensions of the packed total: 590mm x 2300mm x 1460mm
total weight – dry / with water: 850kg / 10250kg
total water capacity: 9400 liters

SPA dimensions: 2200 mm x 1700mm x 800 (1360) mm
SwimSpa dimensions: 4100mm x 2,200 x 1360 mm

SPA CONFIGURATION
1 x lying place
2 x seating area
SWIM SPA CONFIGURATION
2 x massage places
1 x swimming track

CONSTRUCTION:

shell material: acrylic US Aristech acrylic – 3 colors available – heat insulated

Pearl                    Marble               Ocean
T04                       T10                        T01

Teak                       Grey

Thermo cover:









load-bearing frame: AISI 304 stainless steel
Base: polyester
shell insulation: 10 mm

PUMPS SPA
circulation pump: 1 x 0.37 kW
massage pump: 1 x 2.2 kW
blower: 0.7 kW
PUMPS SWIM SPA
circulation pump: 1 x 0.37 kW
massage pump: 2 x 2.2 kW
countercurrent pumps: 2 x 2.2 kW

 SPA ELECTRONICS: GECKO – Canada
control unit: in.Ye5
control screen: Gecko In.k 500
heater: INOX 3 kw

 SWIM SPA ELECTRONICS: GECKO – Canada
control unit: in.Ye5
control screen: Gecko In.k 500
heater: INOX 3 kw

SPA ELECTRICAL CONNECTION:
maximum: 6,50 kW / 16A / 230V
min: 3,5 kW / 16A / 230V
Standard 16A / 230V connector, 2.5 m 3 x 4 mm2 cable

SWIM SPA ELECTRICAL CONNECTION:
maximum: 12,17 kW / 16A / 230V
min: 3,5 kW / 16A / 230V
Standard 16A / 230V connector, 2.5 m 3 x 4 mm2 cable

NOTE: If you want a different setting, such as a three-phase connection or raising the power limit, ask when buying

UNDERWATER LIGHTING SPA – a total of 14 lighting fixtures
1 pc – 5 “underwater LED RGB reflector
10 pcs – LED RGB pool perimeter lighting
1 pc – SLAP
2 pcs – valves

UNDERWATER LIGHTING SWIM SPA – 33 lighting fixtures
2 pcs – 5 “underwater LED RGB reflector
20 pcs – LED RGB pool perimeter lighting
4 pcs – fountain
4 pcs – valves
3 pcs – countercurrent nozzles

NOZZLE CONFIGURATION SPA CMP USA – total number of nozzles 39 pcs – INOX
– 4 pcs x 5 ”(13 cm)
– 8 pcs x 3.5 ”(9 cm)
– 17 pcs x 1 ”(2.5 cm)
air jets:
– 10 pcs
NOZZLE CONFIGURATION SWIM SPA CMA USA – total number of nozzles 23 pcs – INOX
Countercurrent nozzles:
– 6 pcs x 7.5 ”(19 cm) or 3 super swim jets
Massage nozzles:
– 2 pcs x 5 ”(13 cm)
– 4 pcs x 3.5 ”(9 cm)
– 11 pcs x 1 ”(2.5 cm)

FILTERING:
filter cartridges: 2 pcs in SPA and 2 pcs in Swim SPA
Ozone Generator 100 mg / h Spa: YES
Ozone Generator 100 mg / h SwimSpa: YES
U.V. sterilizer SPA: YES
U.V. SwimSPA sterilizer: YES

OTHER SPA EQUIPMENT:
aromatherapy
Drain: 1 pc
Overflow valve: 1 pc
Air mixing regulator: 1 pc
Head pads: 3 pcs
suction: 3 pcs
Thermal cover with buckles
Shell insulation 10 mm
Polyester base
Waterfall with LED lighting

OTHER SWIM SPA EQUIPMENT:
Drain: 1 pc
Overflow valve: 1 pc
Air mixing regulator: 2 pcs
Head pads: 2 pcs
suction: 6 pcs
Thermal cover with buckles
Shell insulation 10 mm
Polyester base
Fountain with LED lighting: 4 pcs
Stairs

NOTE:
The pictures are for illustrative purposes only and do not necessarily show the identical pool for sale.
Only the descriptions in the appendix are valid.
The pool is as complex as Plug & Play with instructions for installation, startup, programming and maintenance in English.

WARRANTY:
construction: 10 years
shell surface – acrylic: 5 years
other equipment: 2 years

• the prices are for a single payment according to the transaction account
